Curtiss-Wright JC040 Single-Axis, Hall-Effect Proportional Rocker

The Curtiss-Wright JC040 single-axis proportional rocker offers safety functionality via dual outputs and is rated to IP67.

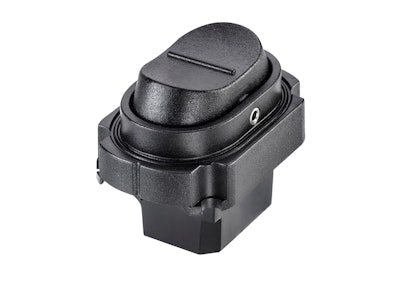

Cwci 181 Jc040 Joystick Controller 3quart 59147a23a9ab0
800px Curtiss Wright Logosvg 10941485

Curtiss-Wright Industrial division has announced the launch of the JC040, a single-axis, Hall-effect proportional rocker that is suitable for arduous applications in specialty off-highway vehicles.

  • Uses non-contacting, Hall-effect sensing technology for long-life integrity of output signal
  • Provides safety functionality via dual outputs which can be set to positive or combination of positive and negative ramps
  • Benefits from independent supply voltages for each output
  • Designed for integration within joystick grips and other in-cab human-machine interfaces
  • ‘Pass through’ design for liquid or dust contamination
  • Electronic robustness is assured by sealing internal electronics to rating of IP67
  • Features integrated optional, mechanical over-press feel – that operates at ±20 degrees of travel from center position – to provide additional operator feedback
  • Electrical output can be used in a system to indicate new mode of operation such as rapid traverse
  • Provides return-to-center, ±25 degree rocker action
  • Features 21 mm (0.83 in.) under-panel depth
  • Rated for 1 million operating cycles
  • Supplied as standalone unit or integrated into Penny & Giles AMF range of grips
  • Offers 5V DC supply voltage and connection via 6-way flying lead
