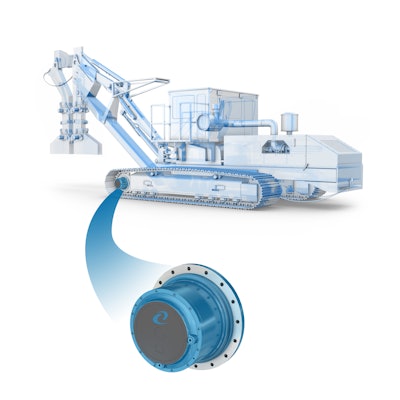

Comer PGRF-11003 Large Track Drives

Comer Industries introduces the large track drives PGRF-11003 for plows, also available for wheeled applications.

• Compact three-stage planetary drives
• Provides 110,000 Nm of maximum output torque, 67,500 Nm continuous
• Can be used for various agricultural applications, including different harvesting machines (potatoes, sugar beets) and forestry machines
• Enables manufacturers to meet the growing needs of compactness and lightness of tracked or wheeled drives
• Offers boosted efficiency and high power density without affecting vehicle speed
• Features 2- or 3-stage planetary reduction and wide range of ratios
• Includes negative parking brake with hydraulic command and disconnection option
• Available hydraulic motors with one or two speeds
• PGRF range also includes models PGRF-7003 and PGRF-9003
• PGRF-7003 provides 80,000 Nm of maximum output torque, 50,000 Nm continuous
• PGRF-9003 delivers 90,000 Nm of maximum output torque, 56,250 Nm continuous
• Smaller sizes for self-propelled mixers, sprayers, windrowers, grape harvesting machines or combine harvesters also available
