ZF Powerline Automatic Transmission

ZF's Powerline eight-speed automatic transmission is designed to provide more comfortable and efficient shifting.

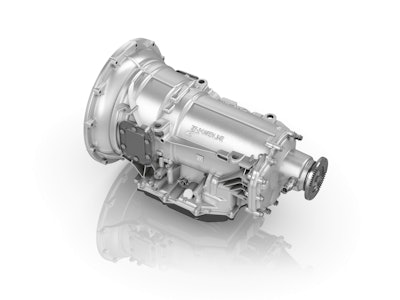

08 ZF PowerLine 577c22d25a9ab
Zf Logo 660 4a Tx4a7lu Qu



The ZF Powerline automatic transmission features eight gears and a design principle adopted from passenger car systems.

  • For medium- and heavy-duty trucks and buses
  • Weighs approximately 150 kg dry (330.7 lbs.)
  • Suitable for engines with up to 1,400 Nm of torque
  • Offers reduced fuel consumption, extended oil change intervals and wear-free driving
  • Can be used on vehicles with gross combination weight of 26 tons
  • Provides improved shifting qualities including comfortable, speed and elimination of tractive force interruption
  • Prepared for use with supplementary PTOs and automatic transmission brake
  • Powershift transmission design suits use with natural gas engines
  • Use of automatic engine stop function enables fuel consumption to be reduced up to another 5%
  • Hybrid compatibility offers prospect of even greater fuel and efficiency savings potential
