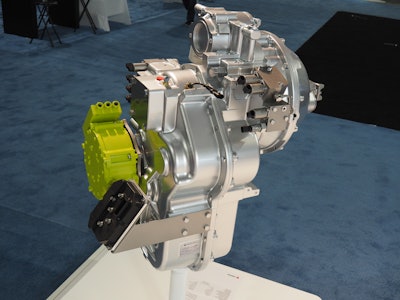

Carraro eTCH90 Long Drop/Torque Converter Full Powershift Transmission

The eTCH90 Long Drop/Torque Converter Full Powershift Transmission is a Parallel Electric Hybrid unit suited for various hybrid- and full-electric machine applications.

May 11, 2020
Carraro Group
E Tch90 B

Carraro Group now offers a comprehensive product portfolio of products for hybrid electric machines and electric powertrains, such as the eTCH90 Long Drop/Torque Converter Full Powershift Transmission.

  • Parallel Electric Hybrid unit
  • Suitable for several equal size tire machines, such as teleboom handlers
  • Controlled by software developed to run in the Carraro proprietary ECU which is fully compliant with ISO 25119 (Functional Safety)
  • Helps achieve improved fuel efficiency and productivity
  • Can be part of a full e-powertrain which includes ECU, and proper sizing and integration of electronic components such as motors and generators, inverters, batteries and battery management system
