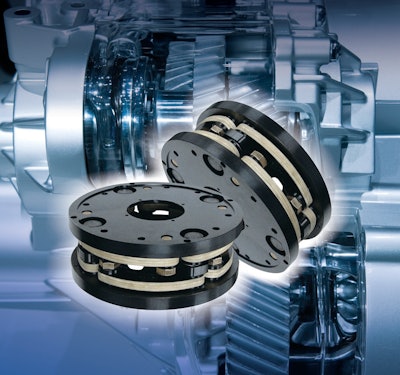

The Zero-Max CD coupling with QD bushing hubs is available in both Single Flex (SF) and Double Flex (DF) models with or without keyways. They are the ideal choice for use in heavy-duty dynamometers for transmission output testing.

  • Provide the ideal combination of high dynamic load capacity and high torsional stiffness
  • SF model provides misalignment up to 3 degree angular; 0.025-in. parallel; 0.160-in. axial
  • DF model provides misalignment up to 3 degree angular; 0.089-in. parallel; 0.320-in. axial
  • 40 to 1,436 Nm of torque capacity in both models
  • Speed ratings from 4,400 to 17,000 rpm
  • Both available with steel hubs to accept QD bushings in inch or metric bore sizes
  • Sizes from 37 to 77
