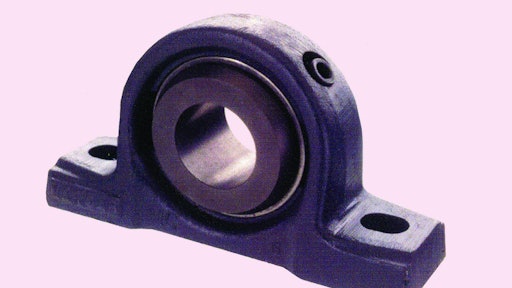

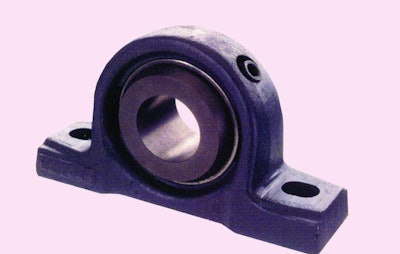

Standard Cast Iron Flange Block And Pillow Block Assemblies

Metallized Carbon Corporation's cast iron flange block and pillow block assemblies are self-lubricating at high temperatures.

M2500 10285028

Metallized Carbon Corporation, a global manufacturer of oil-free, self-lubricating materials, supplies standard, cast iron pillow blocks and flange blocks with self-lubricating, carbon-graphite bearing inserts for applications where oil/grease lubrication cannot be used.

  • Provides low friction and long, maintenance-free, wear life in high temperature applications
  • For applications where oil/grease lubricants would melt, volatilize, or carbonize
  • Rugged cast iron housings hold steel encased, carbon-graphite bushings
  • Two bolt pillow blocks are available for shaft sizes up to 3-1/2 inch diameter
  • Two bolt flange blocks are available for shafts up to 2-1/16 diameter
  • Four bolt flange blocks are available to shafts up to 5 inch diameter
  • Three carbon-graphite grades: Metcar Grade M-11, carbon-graphite, for light loads at temperatures up to 700 F, Metcar Grade 1515, copper impregnated carbon-graphite, for higher loads at temperatures up to 750 F and Metcar Grade 2500, high temperature electro-graphite, for temperatures up to 1000 F
  • Features self-alignment to 5 degrees from center-line
  • Includes replaceable bearing cartridge and two standard lengths to accommodate a normal load or high load
  • Bearings are interchangeable with most standard ball bearing pillow blocks and flange blocks, and can be modified to carry thrust loads
