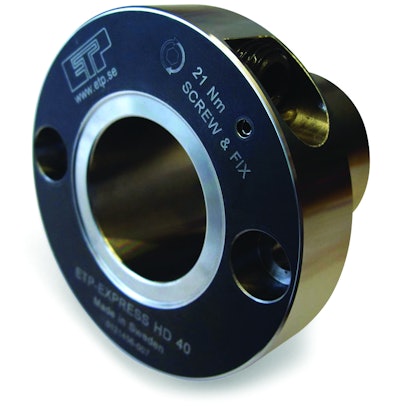

Heavy-duty models of the ETP Express keyless shaft bushings are now available in 20, 40 and 60 mm sizes from Zero-Max.
- Fast and frequent mounting/dismounting capabilities with one radial screw save space and provide accurate mounting without axial movement along shaft
- Offers up to four times radial load capacity of standard ETP Express models
- Provides concentricity to .001 in. T.I.R.
- Radial screw compresses pressure medium with double-walled sleeve that expands and creates a solid connection between shaft and mounting member
- Operating temperature range from -22 F to 180 F
- Provides tight connection between shaft and mounted components
- Handles torque ranges from 40 to 6400 lbs.
- Uniform surface pressure prevents damage to surfaces and enables use of shafts without problem-causing keyways
- Single adjusting screw eliminates need for numerous adjusting of screws and axial movement of mechanical bushing when screws are tightened
- Well suited for use in tight areas
- Requires no lubrication
- Available in full range of inch and metric sizes and stainless steel metric sizes
