Side Entry Bushings

TE Connectivity's side entry bushings has been approved for us in military applications.

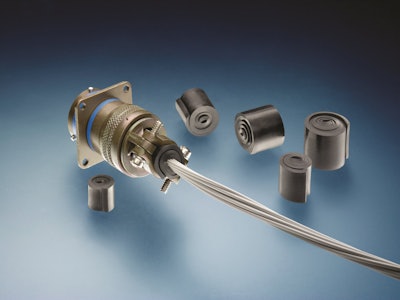

Teconnectivity Side Entry Bush 10927082
Te Connectivity Logo 10933218

TE Connectivity (TE) announces its side entry bushing (SEB) for military, commercial aerospace and commercial marine environments, has been issued a National Stocking Number (NSN) from the Defense Logistics Agency (DLA). When added to a product label, the NSN indicates a review and approval for use within the military's logistics supply chain.

  • For use in high-temperature applications where tape or fixed grommets are used
  • One strip of the pre-coiled, reusable SEB can replace up to 6 ft. and 40 wraps of silicone tape traditionally used in strain relief of wire and cables
  • Features flexible, compressible design
  • Thermally formed and cross-linked to naturally conform and gather circular bundles to provide strain relief on saddle clamp style backshell adapters
  • Does not contain an adhesive layer, which makes it easily removable without the messy residue adhesives leave behind
  • Can be re-used often after repairs have been made
  • Available in six standard sizes
  • Can be trimmed to fit to any size clamp/wire combinations
  • Thermally formed from a silicon elastomer with a temperature rating to 180 C continuous use and flame-retardant
  • Maintains low-temperature flexibility and resists hydraulic fluids, fuel and lubricating oils
  • Conforms to MIL Standard AMS-DTL-23053/10, MIL-PRF-46846 Type II Class 1 and TE specification RT-1140 for silicone elastomeric materials
