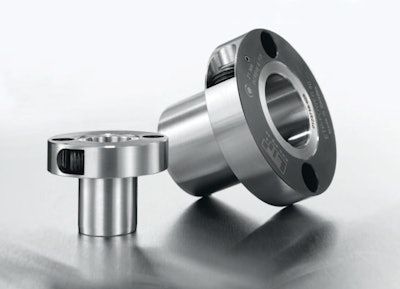

ETP Power keyless shaft locking bushings from Zero-Max feature fast mounting with high radial load capacity.
- Well suited for locking into position rollers in automated machinery
- Torque range from 531 to 10,620 in.-lbs. (60 to 1,200 Nm)
- Single radial screw design ensures fast mounting, repositioning and phasing of components to shafts
- Positions in seconds and can be readjusted hundreds of times just as quickly and without any axial movement of bushing or component along keyless shaft
- Allen wrench is all that is required to mount and lock into place
- Sealed, clean lines resist debris collection and clean easily without any special maintenance
- Single radial tightening screw provides solid and more precise connection between shaft and hub unlike conventional shaft locking bushings
- Incorporates double-walled sleeve filled with pressure medium
- Tightening of actuation screw causes hydraulic pressure medium in sleeve to expand double walled sleeve, forming tight, continuous connection between shaft and mounted component
- Bushing aligns precisely without axial movement as it is tightened
- Available in 15, 19, 20, 22, 24, 25, 28, 30, 32, 35, 38, 40 mm shaft sizes
