SKF Taconite Seal for Bearings in Split Block Housings

The SKF Taconite Seal has a multi-stage labyrinth cartridge seal design to prevent the ingress of contaminants into bearing housings.

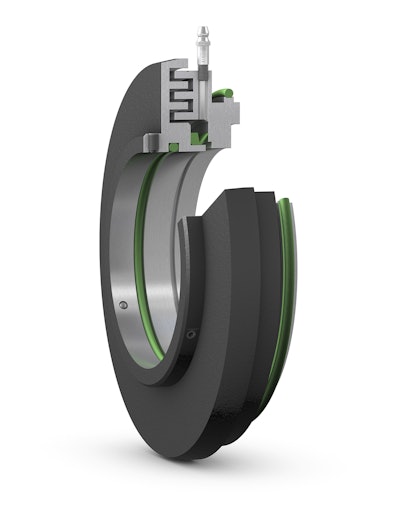

SKF Taconite Seal 558b233e2aa7e

The SKF Taconite Seal for bearings in split block housings protects against extremely contaminated or wet operating conditions.

  • Multi-stage labyrinth cartridge seal design
  • Benefits include exclusion of contaminants, improved prevention of water ingress (even during high-pressure washing), maximized bearing and seal service life, reduced grease consumption, reduced environmental impact, and optimized machine performance and uptime
  • Provides practical barrier solution for demanding applications
  • Can be machined cast iron or steel
  • Consists of two rings (one stationary and one rotating) which form a very narrow labyrinth between them
  • Rotating labyrinth ring carries an internal, low-friction V-ring seal that seals against the stationary labyrinth ring, blocks contaminants from entering bearing housing and contributes to effective purging of grease
  • Rotating labyrinth ring, facing the bearing housing, serves to deflect and fling away water
  • Features shorter axial width compared with conventional types to offer space-saving advantages
  • Can be supplied to easily fit bearing housings in a range of shaft sizes from 50 (1-15/16 in.) to 450 mm (18 in.) as standard
  • Circumferential groove on outer diameter surface of stationary labyrinth ring promotes simplified alignment and installation
  • Smaller seal types will firmly secure to a shaft using three grub/set screws, and versions with larger diameters have been engineered for “bolt-on” mounting
  • Built-in grease fittings enable easy re-greasing when necessary
  • Compatible with new or existing housings
  • Custom products can be developed to satisfy particular application requirements
