POP Avdel NeoBolt Lockbolt Fastener System

POP Avdel's NeoBolt Lockbolt fastening system features a collar and pin with fine locking grooves to provide vibration resistance and fatigue performance.

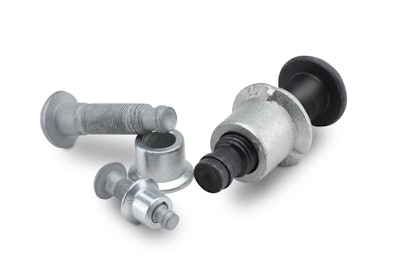

NeoBoltFastener 5526d5807c4dc

POP Avdel, a brand of Stanley Engineered Fastening, introduces NeoBolt, a non-breakstem lockbolt fastening system for heavy-duty structural applications.

  • Two-piece design
  • Includes a collar and a pin with fine pitch locking grooves that, when installed, provide vibration resistance and fatigue performance
  • Features no pin break so there is reduced noise, no metal waste, installation shock, risk of pintails being dropped into the application or work area, and no corrosion at a pin break surface
  • Lack of shock loads extends tool life and reduces operator fatigue
  • Reduced pin weight and size versus normal lockbolts offers environmental benefits of using fewer raw materials and less energy throughout manufacturing, shipping and storage
  • Designed for industries ranging from rail, truck and trailer to mining, construction, commercial vehicles, and alternative energy applications
  • Withstands stresses of the toughest applications and environments
  • Quickly and easily installed in seconds to provide a secure, maintenance-free, long-lasting joint compared to traditional nut and bolt assemblies
  • Offers permanent joint with far greater vibration resistance that avoids loosening by unscrewing
  • Requires a single turn to install
  • Collar “fit-up” feature enables easy pre-assembly in joints and avoids the need to support the pin during the subsequent swaging operation
  • Radial bars on the collar flange, standard on all sizes, further enable quick visual verification of full swage during installation or inspection
  • Available in a variety of sizes ranging from 3/16 to 1 in. (4.8 to 25.4 mm) diameter, with a grip range from 0.520 to 6.23 in. (1.3 to 158 mm)
