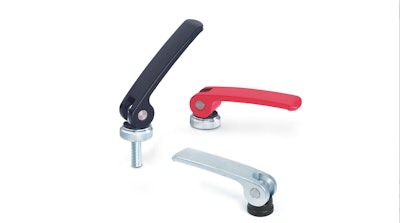

JW Winco GN 927 Clamping Levers with Eccentrical Cam

The JW Winco GN 927 Clamping Levers with Eccentrical Cam permits torque-free clamping.

Jw Winco
Winco Logo 2016 4c Large

JW Winco Inc., A Ganter Company, announces it now offers GN 927 Clamping Levers with Eccentrical Cam, in Tapped Type and Threaded Stud versions.

  • RoHS compliant
  • Used for rapid clamping and releasing operations
  • Permits torque-free clamping in┬ácontrast to clamping operations utilizing threads
  • Ensures movement cannot exceed maximum clamping position
  • No loose components, as all are assembled and mounted in their correct order
  • Thrust forces of up to 1.8 lbs. (8 N) can be obtained
  • Zinc die cast, plastic coated with abrasion-proof epoxy resin finish
  • Components are steel, zinc plated with blue passivated finish
  • Available in black, orange, red, or silver
  • Version with adjustable bearing plate allows for distance between eccentrical cam and contact surface to be adjustable by means of fine threaded knurled nut, permitting maximum clamping force to be set by simple adjustment
  • Adjustable bearing plate also permits selection of preferred lever position in relation to clamping lever pin
  • Version with adjustable bearing plate with setting nut, plate is black technopolymer (Polyamide), glass fiber reinforced, while setting nut is steel, zinc plated in blue passivated finish
  • Bearing Plate on version that is fixed is technopolymer (Polyamide), glass fiber reinforced
