GN 6319.1 Steel and Stainless Steel Spherical Washers

The GN 6319.1 spherical washers from J.W. Winco provide an "undetachable" combination of male and female washers for fast and efficient installation.

March 16, 2015

JW Winco, Inc., A Ganter Company

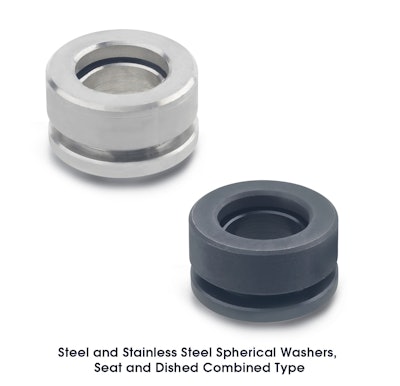

JWWinco Spherical Washers 5506e13caa96a

J.W. Winco Inc. announces it now offers GN 6319.1 Steel and Stainless Steel Spherical Washers, Seat and Dished Combined Type, in metric sizes.

RoHS-compliant
Provides an “undetachable” combination of male and female spherical washers similar to DIN 6319
Simplifies storage and allows for fast and efficient installation
Stainless steel versions are used for clamping in corrosion-free environments
Steel washers are case hardened all round, with depth of 0.2 to 0.4 mm and hardness (550 + 100) HV 10
Stainless steel washers are European standard 1.4305 (American standard 303 Series)
Both types are offered to fit bolt thread sizes M6 to M20

Fill out the form below to request more information about GN 6319.1 Steel and Stainless Steel Spherical Washers
