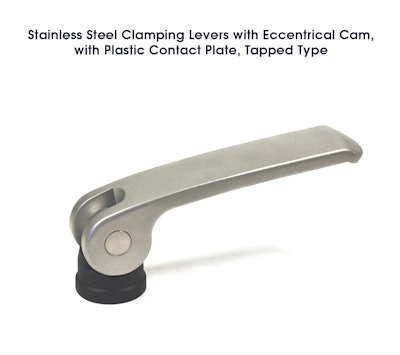

J.W. Winco GN 927.5 Stainless Steel Clamping Levers with Eccentrical Cam

J.W. Winco Inc. now offers GN 927.5 Stainless Steel Clamping Levers with Eccentrical Cam, with Plastic Contact Plate, Tapped Type, in inch and metric sizes.

• RoHS compliant
• Used for rapid clamping and releasing operations
• Permits torque-free clamping via a combined downward vertical and cam actuated motion in contrast to a clamping operation utilizing only threads and a lateral force
• Insures movement cannot exceed the maximum clamping position
• Made of stainless steel
• Provides thrust forces up to 8 kN (1,800 lbs.-ft.)
• Type B has a fixed contact plate of black technopolymer (Polyamide), glass fiber reinforced

Type A version

• Features adjustable contact plate of black technopolymer (Polyacetal POM), glass fiber reinforced, with setting nut of stainless steel
• Offers advantage of adjusting distance between the eccentrical cam and the contact surface by means of a fine threaded knurled nut
• Permits maximum clamping force to be set by a simple adjustment and selection of a preferred lever position in relation to the clamping lever pin
