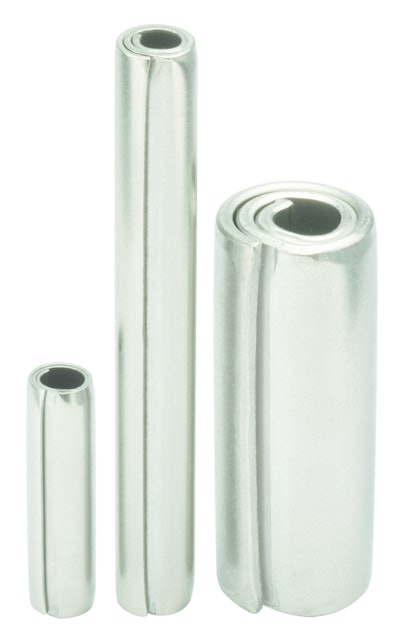

Spirol 316 Stainless Steel Coiled Pins

SPIROL International Corporation introduces a line of 316 stainless steel Coiled Spring Pins designed for applications used in highly corrosive environments.

• Features unique 2-1/4 coil cross-section
• Self retaining
• Compress when installed into host component
• Offers uniform strength and flexibility after insertion
• Shock-absorbing design dampens forces and vibration to prevent hole damage and prolong assembly life
• Exhibits superior resistance to pitting in more severe environments such as when submerged in seawater and when used in the petrochemical industry
• Higher nickel content and addition of molybdenum significantly increases chemical resistance
• Available in metric sizes with nominal diameters ranging from Ø2 to Ø6 mm and lengths from 8 to 50 mm
