J.W. Winco GN 927.7 Stainless Steel Clamping Levers with Eccentrical Cam

J.W. Winco's GN 927.7 Stainless Steel Clamping Levers with Eccentrical Cam with Stainless Steel Contact Plate, Tapped Type is designed for rapid clamping and releasing operations.

September 4, 2015
JW Winco, Inc., A Ganter Company

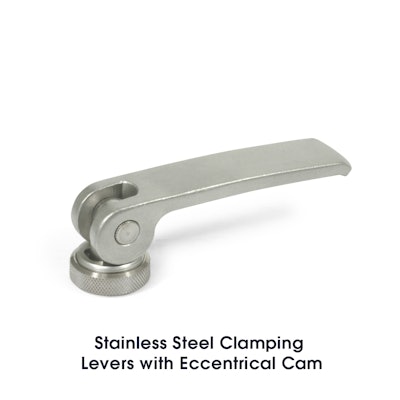

Stainless Steel Clamping Levers with Eccentrical Cam GN927 7 090415 55e9adec3a331
Winco Logo 2016 4c Large

J.W. Winco Inc. announces it now offers GN 927.7 Stainless Steel Clamping Levers with Eccentrical Cam with Stainless Steel Contact Plate, Tapped Type, in inch and metric sizes.

  • Offered in Type A with adjustable contact plate, or Type B with fixed contact plate
  • RoHS compliant
  • Used for rapid clamping and releasing operations
  • Permits torque-free clamping via a combined downward vertical and cam actuated motion, in contrast to a clamping operation utilizing only threads and a lateral force
  • Insures movement cannot exceed the maximum clamping position
  • Enables thrust forces of up to 8 kN (1800 lbs.-ft.) to be obtained
  • Type A version adjusts distance between eccentrical cam and contact surface by means of a fine threaded knurled nut, permitting maximum clamping force to be set by a simple adjustment and selection of a preferred lever position in relation to the clamping lever pin
  • Lever and components are made of AISI 303 stainless steel
  • Contact plate is stainless steel, Super Duplex 255 material, hardened
  • Type A setting nut is also made of AISI 303 stainless steel
