R4-10 Two-Stage Rotary Latch

Southco's R4-10 Two-Stage Rotary Latch increases operator safety by eliminating false latching conditions in enclosure applications.

March 14, 2014

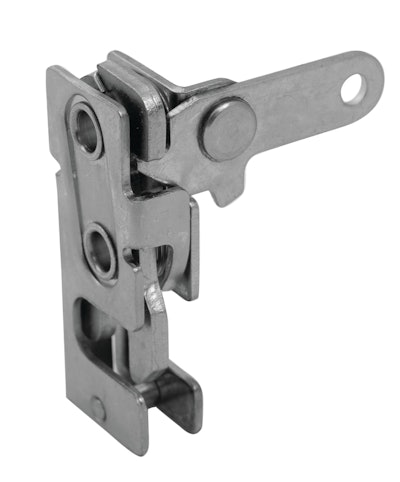

Southco R4 10 11337100

Southco has expanded its line of rotary latching solutions with the launch of the compact R4-10 Two-Stage Rotary Latch, which allows for increased operator safety by eliminating false latching conditions in enclosure applications.

Features compact design, occupying minimal space within an enclosure
Provides concealed latching and increased security
Ensures clean exterior surface free of pry points and push-to-close convenience for doors and panels
Available in corrosion-resistant steel and stainless steel
Suitable for demanding environments and can be used in a broad range of applications across industries
Can be combined with Southco’s line of mechanical and electronic actuators and cables for a complete rotary latching system

Fill out the form below to request more information about R4-10 Two-Stage Rotary Latch
