J.W. Winco GN 115.10 Latches with Lockable Gripping Tray

J.W. Winco's GN 115.10 latches feature a lockable gripping tray for use in space-constrained or other applications where protruding elements are not allowed.

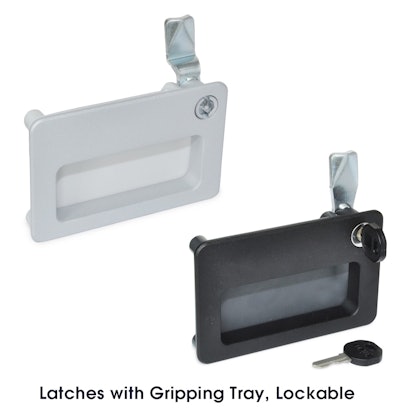

GN115 10 Latches with Gripping Tray 2c Lockable 042916 5731fef962f6e
Winco Logo 2016 4c Large

J.W. Winco, Inc. announces it now offers GN 115.10 Latches with Gripping Tray, Lockable, in metric sizes.

  • RoHS compliant
  • For applications that require a molded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space
  • Rotary movement (limited to 90 degrees) of three-edged wedge moves latch behind the frame, with run-up bevels at the latch making it easier to close the door
  • Front frame is zinc die-cast with either black plastic coated textured finish or silver textured finish
  • Tray is plastic, either gray or light gray
  • Housing is zinc die-cast, black plastic coated finish or chrome plated finish
  • Hardware is zinc-plated, blue passivated steel
  • Five types are offered - with triangular spindle, square spindle A/F 7 mm (0.28 in.), square spindle A/F 8 mm (0.31 in.), slot, or double bit
  • Twenty-two different latch arms cover the latch distance in a range from 4-50 mm (0.16-1.97 in.)
