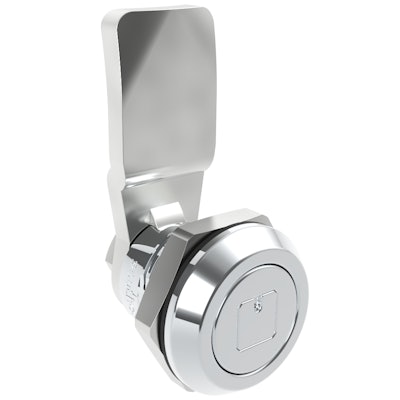

Southco E5 Shutter Cam Latch

Southco's E5 Shutter Cam Latch includes a drop bushing feature to ensure secure latching in high vibration applications.

Southco E5 Shutter Cam 58247c2376cfb
Southco Logo

Southco Inc. has introduced the E5 Shutter Cam Latch to its E5 Cam Latch Series, offering a latch designed to prevent accidental opening.

  • Drop bushing feature adds additional security by preventing cam from rotating open in high vibration applications
  • Designed with spring loaded bushing that covers driver recess
  • Bushing remains in the depressed position in the event that the latch is not entirely closed, providing visual indication the latch is unsecured
  • Bushing is designed with longer travel distance, providing enhanced security
  • Features flush, low profile design to provide clean appearance, and minimize dust and debris collection that may affect operation
  • Meets NEMA 4 and IP65 standards for water and dust protection, as well as EN61373 shock and vibration standard for railway applications
  • Variety of grip lengths possible
  • Available in numerous head style options for added security
  • Features same panel hole prep as standard series, and is available with separate latch and cam assembly to promote modular use
