Southco Padlockable E3 Compression Latch

The Southco E3 T-handle Compression Latch has an integrated padlock for secure latching and is constructed of robust stainless steel.

April 13, 2017

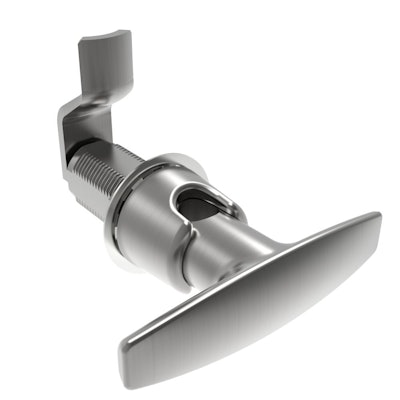

E3 T Handle 58efd4183b0f9

Southco Inc. has expanded its successful E3 VISE ACTION Compression Latch Series with an ergonomic T-handle version that features an integrated padlockable design.

Combines ergonomic operation with enhanced security to provide vibration-resistant latching in rugged environments
T-handle grip enables gloved hand operation
Constructed of robust stainless steel
Offers high corrosion resistance
Features polished finish to complement industrial design
Tested to EN61373 European standard for shock and vibration for railway applications, and meets NEMA 4 and IP65 standards for water and dust protection
Various grip lengths available
Features same panel hole prep as standard series
Available either with pre-installed cam options to minimize installation time or without to enhance flexibility in modular use
