Southco E5 Cam Latch with Adjustable Grip

Southco's E5 Cam Latch with adjustable grip features an extended shaft that allows the cam to be set at a specific grip to tightly secure a door or panel.

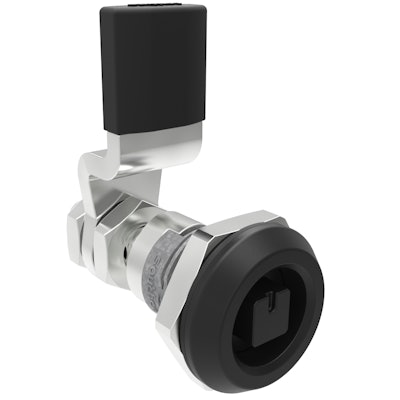

E5 6 Npl Pr 1000x1000
Southco Logo

Southco Inc. has expanded its E5 Cam Latch Series with a version that provides flexible grip adjustment, allowing a single latching solution to be used for multiple applications.

Capable of delivering grip range of up to 11.5 mm (0.5 in.)

  • Features extended shaft that allows cam to be set at specific grip to tightly secure a door or panel
  • Provides flexibility in grip adjustment to overcome door tolerance inconsistency and permanent gasket setting
  • For applications with door gasketing which have a tendency to set permanently under a prolonged compressed state, the flexible grip adjustment corrects this issue by allowing the grip to be readjusted to provide optimal door closing or gasket sealing
  • Ramp profile of cam also acts as lead-in to assist door closing, and provides up to 1 mm (0.04 in.) of compression
  • Tested to NEMA 4 and IP65 standards for water and dust protection, providing ingress protection
  • Suitable for use indoors and out
  • Deep offset, standard offset, and straight (no offset) options available
  • Metal cam features plastic cap that minimizes noise when making contact with keeper, delivering robust, scratch-free engagement with frame and protecting decorated or coated finishes
  • Features same panel hole prep as standard series
  • Available with separate latch and cam assembly to promote modular use
