JW Winco GN 761 Series Toggle Latches

JW Winco’s GN 761 series toggle latches are designed with holding forces of 225 lbf.

2021 05 Toggle Latches
JW Winco
Winco Logo 2016 4c Large

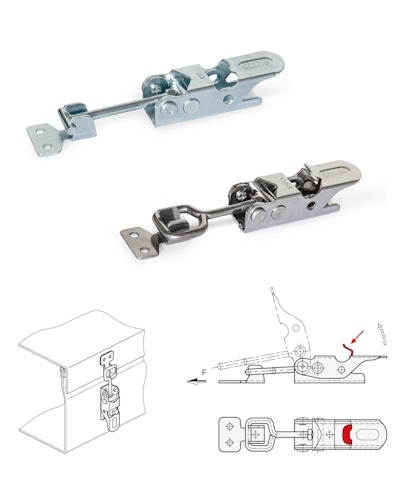

JW WincoGN 761 series toggle switches offer a latching solution for applications in the medium weight range.

  • Made of zinc plated steel or stainless steel
  • Designed with holding forces of 225 lbf (1,000 N), 450 lbf (2,000 N) and 674 lbf (3,000 N)
  • Supplied with loop-shaped or T-shaped latch bolt
  • Suited for use with flaps, lids, covers or hoods which must be closed quickly, easily and reliably
  • Can be secured with padlocks
  • Thread on the latch bolt allows for simple adjustment of the travel distance to ensure precise actuation of the lever
  • Optional designs with customized dimensions, shapes and features are available
  • GN 761.1 model features safety hook integrated into the body which automatically latches into the actuating lever at the end of the closing movement
  • Can only be opened after unlocking the safety hook
