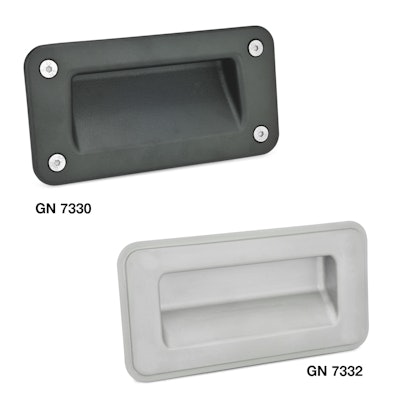

JW Winco GN 7332 & GN 7330 Gripping Trays

The GN 7332 & GN 7330 Gripping Trays are mounted flush to surfaces, suiting applications which require space savings.

Jw Winco Gn 7330 7332 Gripping Trays 052119
Winco Logo 2016 4c Large

JW Winco Inc., A Ganter Company, now has available GN 7332 & GN 7330 Gripping Trays with front or back mounting options.

  • In contrast to typical handles, offers advantage of being flush to surface which suits applications requiring space savings
  • Used for pulling or lifting of cabinet doors, door hatches, and entry doors
  • Can be mounted either from front or operator’s side with countersunk screws, or from the back with threaded studs
  • Available with or without sealing
  • Sealed front mounting versions with countersunk sealing screws and sealed back side prevents entry of fluids or dust into housing interior where tray is being mounted
  • GN 7330 are made of die-cast zinc and supplied with powder coating in either black or silver, though coating in different colors available upon request.
  • GN 7332 are made of high-quality deep-drawn, rust-free stainless steel with the surface blasted to a fine matte finish
  • Threaded studs used to mount from the back are not visible from the front
