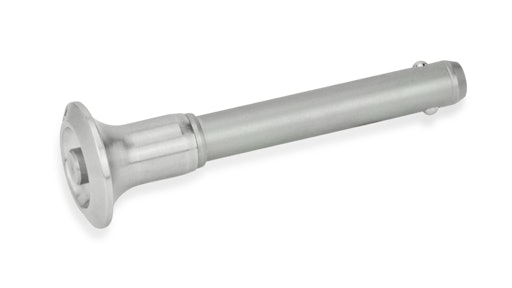

JW Winco Inc., A Ganter Company, has expanded its line of GN 113.10 Heavy-Duty Ball Lock Pins Stainless Steel, with Stainless Steel Shank AISI 630.
- Rapid release pins
- Features extreme load capacity
- Used for quick fixing, connecting, and locking of various parts and workpieces
- Typical applications include use where pins may need to be regularly moved in and out of position when connecting two components, yet require a more secure hold of those two components
- Pressing spring-loaded push button unlocks both balls and locks them again upon release
- Suited for some corrosion-free applications
- Manufactured of Stainless Steel
- Shank (shaft) is manufactured of heavy-duty, hardened and highly abrasion-resistant European Standard 1.4542 (AISI 630) Stainless Steel
- Knob, push button and plunger pin made of European Standard No. 1.4404 (AISI 316L)
- Balls are European Standard No. 1.3541 (AISI 420C), and spring European Standard No. 1.4565
