JW Winco Series GN 415 Side Thrust Pins

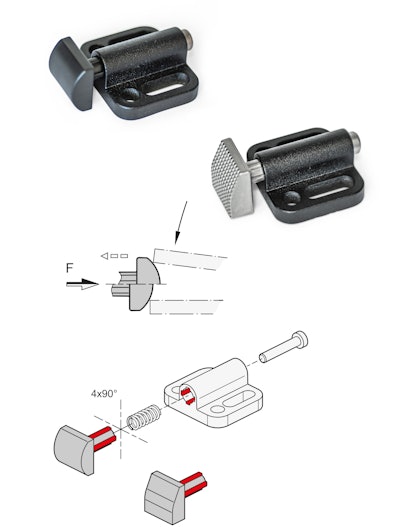

JW Winco’s Series GN 415 side thrust pins are designed to be more compact and adaptable than the previous versions.

• Available in three sizes between 0.87 and 1.54 in. (22 and 39 mm) wide
• Available with two slide types, the wedge-shaped or cylindrical, rounded thrust pad hold parts with side pressure and exert an additional downward force
• All thrust pads can be rotated around its long axis in 90-degree steps to optimally adjust to the part geometry
• Thrust pads are available in POM plastic as well as stainless steel with smooth or textured pressure pad for better grip
• Stainless steel version is produced by injection molding of metal and is subject to only minimal measurement tolerances
• Fastening is implemented for the black zinc die cast housing
• Two normal bores are supplemented by slots that allow the housing to be shifted by a generous 0.18-0.53 in. (4.5-13.5 mm)
