Allied Motion Technologies WheelMax Steering Series Wheel Drive Assemblies

The Allied Motion Technologies WheelMax Steering Drives are fully-integrated, electrically-powered traction wheels with on-board steering systems for electric vehicles.

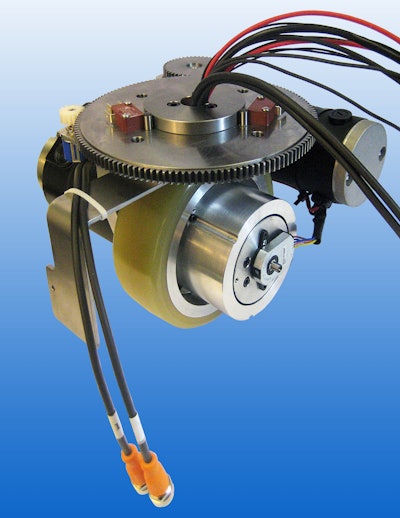

Allied Motion Powered Wheel Drive

Allied Motion Technologies introduces the WheelMax Steering Series wheel drive assemblies.

  • Fully-integrated, electrically-powered traction wheels with on-board steering systems for electric vehicles
  • Combines a traction wheel with tire, epicyclic gearbox, robust steering gear and bearing system, and two rugged PMDC brush motors, one for traction and one for steering power
  • Complete assembly is compact, easy to mount, and requires little to no maintenance
  • Applications include AGVs, and autonomous robotic material handlers, among many others
  • Handles loads up to 227 kg (500 lbs.) and provides 14 Nm (120 lbs.-in.) continuous torque at speeds of up to 5 km/hr (3 mph)
  • Equipped standard with holding brake and incremental encoder
  • Standard tire material is polyurethane 95 Shore A for traction, long life, and low noise
  • Design makes exchange of wheel and tire easy to accomplish with minimal effort
  • Alternate tire materials, mounting arrangements, and feedback encoders are available
  • Optimized helical gear geometry minimizes noise and vibration
  • Tapered roller bearing supports wheel’s load, and axial bearing supports radial loads
  • IP40 protection level
  • Options include models compatibility with 48V DC power source instead of 24V DC, brushless motor (with/without integrated drive electronics) for traction and/or steering power
  • Flexible wiring for high cycle rotation and manual-release holding brake are available options
