Torque sensor for electric power steering

August 10, 2007

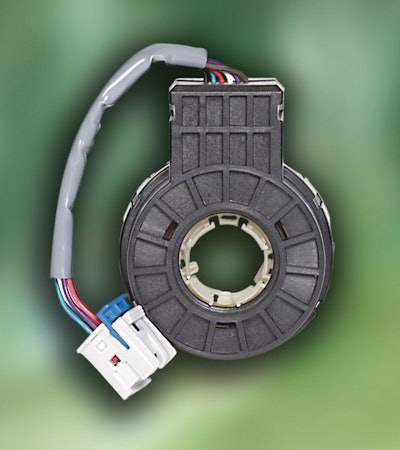

Torquesensorforelectricpowersteering 10057237
TT Electronic's BI Technologies Electronics Components Div. has developed a steering sensor based on its Magnetorque technology. The non-contacting steering sensor features dual phased outputs for reliable diagnostic characteristics.
  • Durable
  • Does not require clock springs or slip rings to convey power between rotating and non-rotating portions of sensor
  • Rotational life of 25 million revolutions
  • 0.5v operating voltage
  • -40C to 125C temperature range
  • Can be integrated into single package with BI Technologies' digital angular position sensor (DAPS) technology
