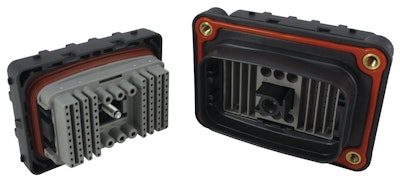

DRCP Series Electrical Connectors

The DRCP Series electrical connectors from Deutsch are available as an 86- or 126-cavity arrangement.

Deutsch Drcp Series 10774730
Te Connectivity Logo 10933221

LADD Industries announces the addition of the DRCP Series electrical connectors to the Deutsch product line. Deutsch industrial connectors are specifically designed for critical applications in harsh environments where dust, dirt, moisture, salt spray and rough terrain can contaminate or damage electrical connections.

  • Environmentally sealed
  • Constructed of heavy-duty thermoplastic
  • Features high pin densities with 86- and 126-cavity arrangements
  • Available with bulkhead and printed circuit board mounting options
  • 86-cavity arrangement accepts 80 size 20 contacts and 6 size 12 contacts
  • 126-cavity arrangement is a printed circuit board mounted connector that accepts 120 size 20 contacts and 6 size 12 contacts
  • Includes integrated TPAs, ensuring proper contact alignment and ease of assembly
