IP67-Rated Combination D-Subminiature Connectors

CONEC introduces its series of combination D-subminiature connectors which are IP67-rated for use in rugged environments.

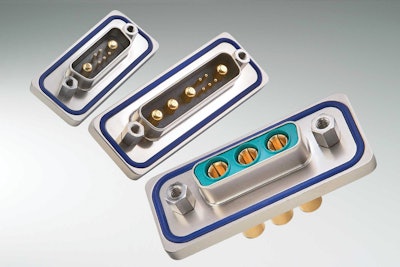

Conec Con092 Ip67 Combod Sub 10814391

CONEC has developed a series of IP67-rated combination D-subminiature connectors that deliver high reliability in rugged environments.

  • Available in one-piece “solid body” frame design
  • Comes pre-populated with signal, high power or coaxial contacts
  • Provides a single-connector solution for harsh environment applications requiring a combination of power, signal and coaxial connections
  • Features high-quality, gold-plated machined contacts for best interface possible
  • Includes die-cast metal frame and O-ring to seal connector to panel
  • Available in standard combination pin configurations
  • Interfaces directly with MIL-C-24308 connector standards
  • All plastic materials comply with UL94V-0 standards
  • Power rating ranges from 10A to 20A with a temperature range of -40 C to 105 C
  • Available with 4-40 UNC or M3 threaded inserts
  • Both RoHS and REACH compliant
  • Gold plating options are available along with a variety of accessories such as waterproof hoods and sealing caps
  • Available in a variety of configurations from shell size 1 through 5
