AMPSEAL 16 Hybrid Lever

The AMPSEAL 16 hybrid lever system from TE Connectivity offers environmental protection by sealing the wires between the connector halves.

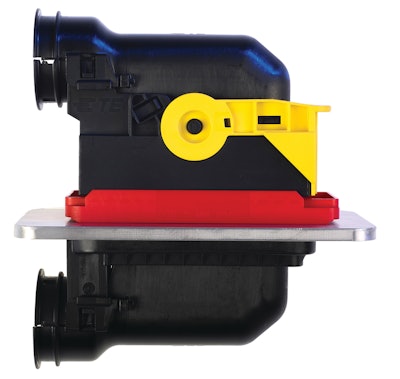

Ampseal 16 28pol Hybrid Lever 11301485
Te Logo

TE Connectivity introduces the AMPSEAL 16 hybrid lever connector system which accepts circular stamped and formed or screw machine terminals.

  • Hybrid pin out arrangement is designed to provide flexibillty for various vehicle applications
  • Provides environmental protection by sealing wires between the connector halves and to the panel
  • Allows toolless mounting of connector to the panel, reducing application cost and time for customers
  • RoHS Ready
  • Includes multiple terminal sizes in the same housing
  • Features slide mechanism for smooth mating and unmating
  • Toolless mounting and unmounting to the panel is completed using drop-and-slide mounting clip
  • Pre-staged TPA is included on plug and cap assemblies
  • Allows toolless TPA removal on the plug assembly
  • Features mechanical as well as color coded keying
  • Same wire cover can be used on the plug and cap assemblies
  • Includes different color mounting clips for different panel thicknesses, providing easy identi?cation and application
  • Operating temperature range of -55 to 125 C
  • Mating force is 90 N max
