TE Connectivity Rugged HDSCS Connectors

TE Connectivity's HDSCS connectors are made of heavy-duty UL 94-V0-rated thermoplastic, enabling use in heavy-duty applications.

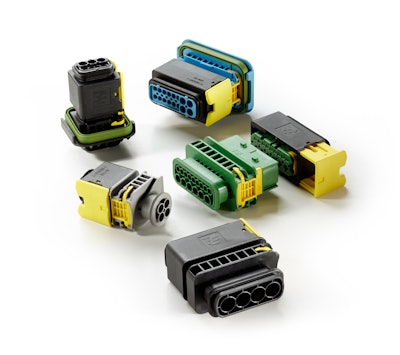

Hdscs Group Shadow 4160x3688
Te Logo

TE Connectivity (TE) presents its HDSCS connector series, a growing product line that offers solutions for applications where sealed, rugged connections are needed.

  • Made of heavy-duty UL 94-V0-rated thermoplastic
  • Designed to withstand harsh conditions of truck, bus, agricultural, mining and construction industries
  • Utilizes TE’s field-proven AMP MCP contacts
  • Offered in arrangements from two through 18 positions
  • Features integrated secondary lock with poka-yoke feature that can be used for inline applications or for flange mounting in wire-to-wire or wire-to-device configurations
  • Rated to IP67 and IP6K9K (when used with a backshell)
  • Available in five housing sizes with four keying options
  • Solutions for CANbus architecture are available
  • Accessory items, such as fixing slides for mounting, protection caps that protect when not mated, and backshells offering additional protection further enhance flexibility
  • Provides reliability and performance in high-temperature and vibration resistance applications including on engine or transmission, under the hood, on motor controllers and solenoid interfaces, and on chassis or in a cab
