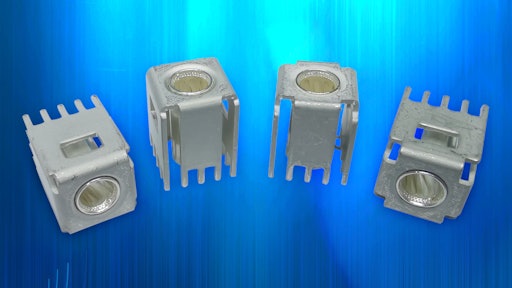

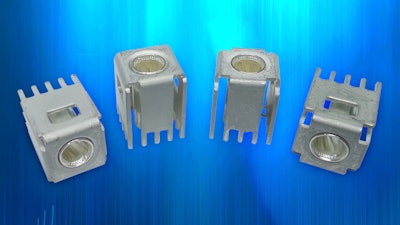

Amphenol WTB Right-Angle Mating Pin Option

Amphenol Industrial Operations has expanded its WTB (wire-to-board) portfolio with the addition of a right-angle mating pin option in both the 2.4 and 3.6 mm (0.09 and 0.14 in.) WTB board level products.

• Transfers power from a cable harness to a PCB or other device
• New two-way WTB connector integrates positive and negative/ground poles for power connection into one plastic housing to help save room and prevent short circuiting
• Current rating to 70A
• Can withstand 500V DC and 100 mating cycles
• Available in crimp with 10, 8 and 6AWG
• Operating temperature of -40-85 C (-40-185 F)
• Meets customer requirements of low profile, high density and high current when needed
• Includes Amphenol’s patented RADSOK technology to meet increasing power requirements of printed circuit boards and need for smaller board footprint
• RoHS complaint and available in UL-94 V0
