binder M16 Connectors with Pin Counts for 5G Networks

binder USA’s compact M16 connectors are widely used in applications where space is limited and/or higher pin counts are required.

M16 Connectors
M16 Connectors
binder USA

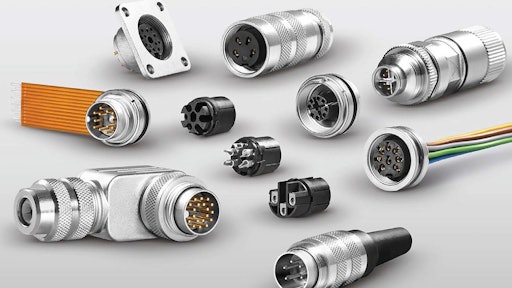

The latest M16 connectors from Binder USA, LP are designed to meet the data speeds, high frequencies, and tight space requirements for 5G wireless networks.

  • Accommodates up to 24 contacts and transmits data at speeds up to 10Gbit/s
  • Compact at 18.5 mm (0.72 in.) in diameter and 60 mm (2.36 in.) in length, with special short and right-angled versions available with a height of just 37 mm (1.46 in.)
  • Compliant with AISG C485 standards, providing international protection for selected outdoor installations
  • Optimized with 360-degree EMI shielding
  • Rated up to IP68 when connected, providing reliable performance in harsh outdoor environments
  • Widely used in instrumentation, measurement, and sensors where space is limited and/or higher pin counts are required than those offered by M8 and M12 connectors
  • Solder/crimp/screw termination
  • Cable range 4-10 mm (0.157-0.39 in.) in diameter
  • Rated voltage 250V (impulse voltage to 1,500V)
  • Rated current 7A (at 40 C/104 F)
  • DIN EN 61076-2-106
  • Applications include pneumatic controls, gas and pressure measurement, torque sensors, and motor-speed regulators, and many others
