PolySwitch Circuit Protection Devices

Waytek introduces its PolySwitch circuit protection devices for over-current protection in heavy-duty equipment wire harnesses.

Waytek Polyswitchcircuitprotec 11017355
Watk 21 Stacked Logo 10 5 21 White Background

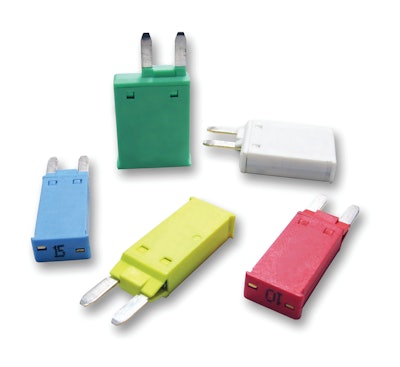

Waytek Inc. introduces PolySwitch circuit protection devices as a resettable over-current protection solution in vehicle, heavy truck and equipment wire harnesses.

  • Provides resettable over-current protection in a 2.8mm footprint and solid state design
  • Easy drop-in replacement for mini fuses and type II circuit breakers in 12V vehicle systems
  • Features a solid state design with no moving parts or contacts to arc, erode or weld together
  • Provides longer lasting and more reliable circuit protection than circuit breakers or fuses
  • Operates with a resistance switching action that latches immediately following an overcurrent tripping condition
  • Provides virtually constant power consumption across a voltage range of 4 to 14V
  • Has less thermal cross talk between devices than Type II bimetal circuit breakers due to low power dissipation and flatter thermal derating
  • Rated for temperatures between -40 and 257 F
  • Passes more current at higher temperatures than bimetal circuit breakers
  • Suitable for harsh underhood applications
  • Bright color-coded housings and rated current values printed on the top of the devices make replacement easy, and help prevent installation errors
  • Exposed probe points facilitate inspection and faultfinding, helping lower labor time and costs
