Protocol Converters for CAN and LIN Networks

The protocol converters from Axiomatic enable interfacing between CAN-based diesel engine networks or automotive LIN networks.

October 29, 2013

Axiomatic Technologies Corporation

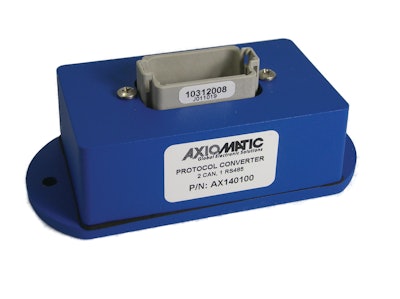

Ax140100 300dpi 11213659

Axiomatic introduces a line of rugged protocol converters to interface between CANbased diesel engine networks or automotive LIN networks.

Works with SAE J1939, SAE J1587, CANopen, Modbus RTU, LIN and Power Line Communications (SAE J2497) gateways
Simulink block libraries allow designers to program device for specific applications
Features up to two \isolated CAN ports (SAEJ1939, CANopen) and one isolated SAE J1587 (SAE J1708) port
Converts SAE J2497 messages over power line communications (a bidirectional, serial communications link over the vehicle power supply line)
Provides 12 and 24V DC nominal input power
Includes compact, IP67 packaging and integrated Deutsch IPD connector
EMC and RoHS/REACH compliant
MTBF reliability data available
Includes user programmable functionality (Electronic Assistant)
Software modifications are provided to meet specific requirements
Connects legacy fieldbuses to modern SAE J1939 networked equipment
Transfers and monitors engine data
Communicates between tractors and trailers
Monitors batteries in automotive control systems
