PowerCore Intelligent Xpansion PDM

Murphy by Enovation Controls has introduced the PowerCore Intelligent Xpansion PDM to expand CANbus control networks with solid-state switches.

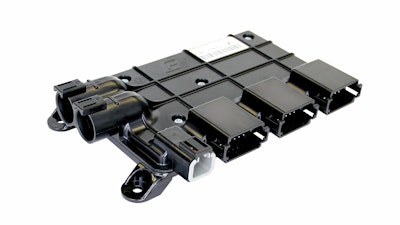

EnovationControls_IntelligentXpansionPDM

The PowerCore Intelligent Xpansion PDM (Power Distribution Module) from Murphy by Enovation Controls expands CANbus control networks by replacing existing traditional relay and fuse boxes with more reliable, solid-state switches.

  • Directly drives lights, cooling fans, wiper motors, directional DC motors and other high current loads
  • Each of the 12 PDM outputs can switch or proportionally control 15A loads in 2.5A increments
  • Features built-in over-current detection and shutdown capability
  • Outputs are paired to run up to six electric motors with H-bridge direction control
  • Twelve digital inputs monitor switched battery, ground and floating inputs
  • Eight analog inputs are available with a 5V sensor supply
  • Remotely locating PDM module near signals and loads reduces wiring length and cuts costs by up to 60%
  • I/O is multiplexed using a CANbus network, which allows engineers to greatly simplify harness design for ease of installation and greater reliability
  • Inputs can directly trigger outputs for applications not requiring a CANbus, eliminating need for separate microcontroller
  • Fully sealed and potted to withstand wash-down and dust
