AX081500 DC/DC Converter

Axiomatic's AX081500 DC/DC converter offers the ability to be used in a current sharing configuration.

Axiomatic AX081500DCDCConverter 54bd782c75aa5
Axiomatic Logo 2019

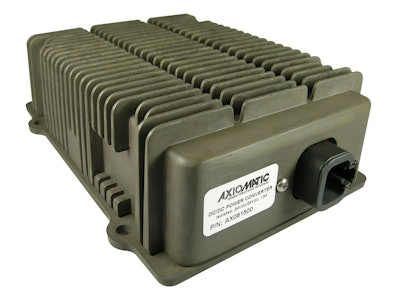

Manage 24V DC battery power to sensitive electronic devices using the UL recognized and rugged Axiomatic AX081500 DC/DC Converter.

  • Features typical efficiency of 93%
  • Includes thermal protection for over temperature
  • Can be used in a current sharing configuration
  • Operating temperature range is -40 to 85 C (-40 to 185 F)
  • Reverse battery, over and under-voltage protection included, as well as short circuit and overcurrent protection
  • IP67 rating for survival in harsh operating conditions
  • Includes one Deutsch IPD DT13-4P connector
  • Compactly designed, measuring 8.50 x 5.125 x 2.50 in. (215.90 x 130.18 x 63.50 mm)
  • Features redundancy for parallel application
  • EMI/EMC compliant
  • SAE J1455 and SAE J1113 compliant
