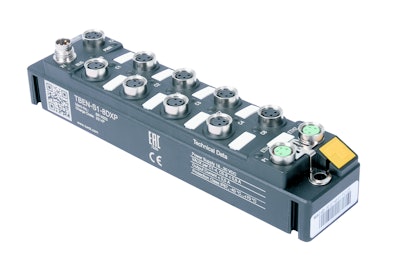

TURCK TBEN-S Series Ultra-Compact Digital Block I/O Modules

TURCK's TBEN-S Series I/O modules are compactly designed and can be assembled directly onto a machine.

TURCK TBEN S 5522eacf6086d

TURCK presents the first ultra-compact, digital block-I/O modules of the TBEN-S (Small) Series.

  • Fully potted with IP65, IP67, and IP69K ratings
  • Measures 1.25 in. x 5.6 in. and allows assembly directly on the machine
  • Features temperature range from -40 to 70 C
  • Can be operated without additional gateways in each of the three Ethernet systems: PROFINET, Modbus TCP or EtherNet/IP
  • Multiprotocol technology enables automatic recognition of used protocol by listening to communication during the start-up phase
  • Integrated switch allows use of the devices in line topology
  • Five variants are available: four digital inputs and outputs, eight digital inputs with module diagnostics, eight digital inputs with channel diagnostics, eight digital outputs as well as eight universal digital inputs and outputs
  • Outputs switch a current of up to 2 A
  • Each output channel is continuously monitored by the integrated diagnostic system that records all events in the device’s event log to simplify troubleshooting and reduce downtime
  • Internal web server, which can be used to display diagnostics in plain text, also helps reduce downtime
  • Web page has been set up following the concept of “Responsive Design” so that a smartphone can also be used for easy diagnosis
