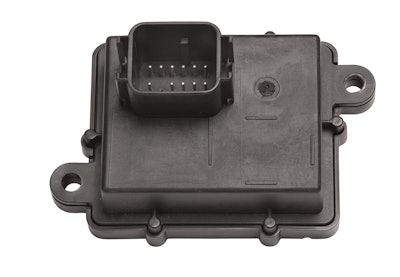

AMETEK CAN I/O X Expander Module

The AMETEK CAN I/O X Expander Module converts switched, analog or pulsed input into CAN data bus messages.

Ametek CANIO 57adcc7361023
Ametek With Vis Logo

AMETEK Vehicular Instrumentation Systems (VIS) has added the CAN I/O X Expander Module to its family of CAN Interface Modules used to enhance vehicle instrumentation systems.

  • Converts switched, analog or pulsed input into a standard or proprietary J1939 CAN data bus message for any device on a vehicle instrumentation system
  • Provides manual transmissions and mechanical engines a means to connect with electronic instrumentation¬†
  • Allows switched and analog inputs to be converted to digital data and converts pulsed input into a J1939 CAN data bus message
  • Features 10¬†switched and analog inputs and a minimal footprint of 18.7 sq. in. (120.6 sq. cm)
  • Environmentally sealed against dust and moisture penetration to IP67 specifications
  • Can be mounted onto a vehicle chassis
  • Withstands harsh conditions and rugged off-highway environments
  • Meets all SAE J1455 and J1113 requirements for vehicular instrumentation
