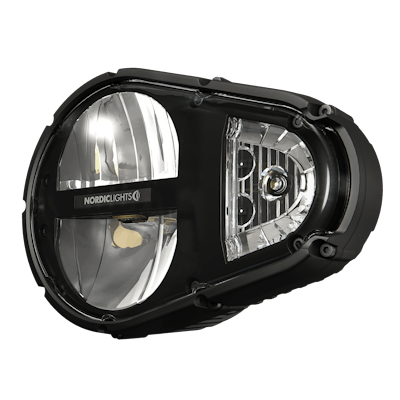

Finnish work light producer Nordic Lights has introduced the world’s first all LED, ECE approved combination headlight in serial production, the Nordic Sculptor LED N60XX QD.
- Developed for use in the most demanding work environments around the world
- Offers headlight, parking light and 180-degree indicator in one application
- Features compact dimensions of 233 mm x 161 mm x 134 mm
- Universal design makes it a suitable option for equipment with shorter production series
- Integrated Nordic Lights' Quake dampening system for robust design
- Withstands shocks of 60G and vibration of 15.3 Grms at 24-2,000 Hz
- LED diodes offer higher vibration resistance compared to halogen bulbs
- Maintenance-free design which matches life cycle of the machinery
- Runs on input voltage between 12 and 24V with low power consumption of 22 W
- Produces light output of 1,300 lumens at light source and over 600 lumen on the road
- Color temperature of 5,700 K, making it easier to detect obstacles in the dark without straining eyes
- Illumination is brighter compared to halogen lights
- Cooling is handled by thermal transfer through alloy housing to cooling lamellas at the back
- Operational temperature range is from -40-85 C
- Highly sealed and withstands dust, water and salt spray
- Complies with electromagnetic compatibility requirements (EMC) of R10, ISO 7637-2, ISO 14982, ISO 13766, EN12895 and CISPR 25 Class 3
- Fulfills UN R112 Class B regulations
- Available in two versions, N6001 for rear mount and N6002 for pedestral or pendant mount, as well as in both right- and left-hand traffic versions
