Optronics UCL41 Series Scene Light

The Optronics UCL41 Series Scene Light delivers an intense white LED beam pattern at a 45-degree angle to its mounting position.

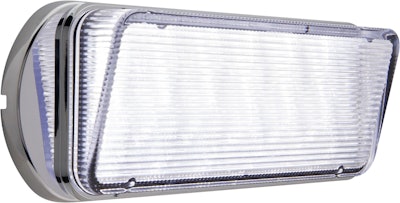

Ucl41 Cb Angle Lit
Optronics Logo Chrome

Optronics International announces the introduction of its UCL41 Series Scene Light.

  • Directional scene lighting which casts more focused beam of LED light in direction that can be accurately defined simply by its placement
  • Uses 12 diodes and advanced optical engineering to focus optimal beam pattern
  • Delivers intense white LED beam pattern at 45-degree angle to its mounting position
  • Enables OEMs, bodybuilders and end users to determine size and shape of scene they prefer to illuminate
  • Mounting lamp higher creates larger scene, while mounting it lower creates smaller scene
  • Can be rotated before mounting to deliver light that is oriented to vehicle’s front, rear and sides
  • Low-profile surface-mount lamp is easy to install and requires only two mounting fasteners
  • Once secured, black- or chrome-coated plastic bezel snaps into position to give clean, finished appearance
  • Accommodates both 12- and 24V electrical systems
  • Features IP67 rating
  • Comes with 6-in. (15.2 cm) hard-wired lead and ground wires
  • Requires only 3/4 in. (1.9 cm) hole for wire feed
  • Measures just 8.7 in. (22.1 cm) wide and 2.95 in. (7.5 cm) high
  • 1.59 in. (4 cm) thick when installed, including mounting plate and bezel
  • To maintain low profile, lens is designed with 15-degree angle, relying on advanced optical design to enable 45-degree beam pattern
  • Lenses and housings are made of tough polycarbonate material that is sonically welded, and base is sturdy aluminum
  • Employs solid-state, surface-mount device (SMD) design that protects electronics against moisture, shock and vibration

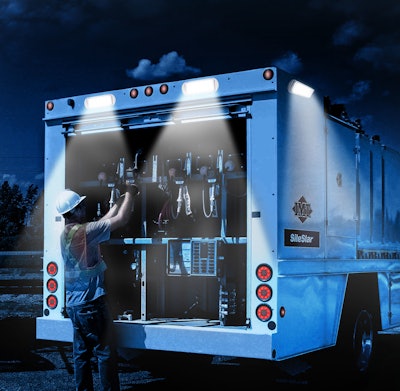

Imt Truck Ucl41 Cb
