LEDtronics PT503B Series Panel-Mount LED Indicator Lamps

The LEDtronics PT503B series of panel-mount LED indicator lamps offers negligible heat generation and sunlight-visible LED light colors.

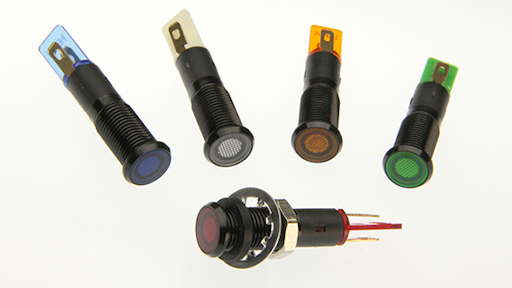

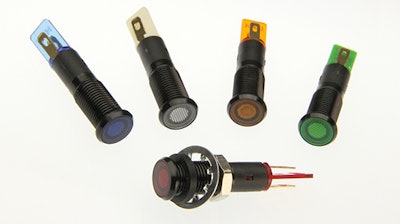

Pr Pt503 T18 B

LEDtronics has released the PT503B series of energy-saving panel-mount LED indicator lamps geared to harsh environments where durability and accurate light reading are vital.

  • IP66 rated for protection against dust, solid objects and water
  • Offers negligible heat generation and sunlight-visible LED light colors
  • For use in industries such as defense and aerospace, utilities, industrial automation, robotics and automotive
  • Able to operate in extreme conditions
  • Features male tab terminal connectors for easier installation.
  • Male tab terminal connectors provide sharper, faster and higher-intensity illumination and better visibility than standard lamps
  • Low power draw of only 0.1W, offering 90% reduction in power consumption compared to incandescent counterparts
  • Flush-flat, tinted, polycarbonate plastic lens resists impact, provides optimal viewing angle of 60 degrees, and maximizes light dispersion
  • Enclosed in low-profile, threaded black PA66 nylon housing with black bezel, and fits 8mm (0.32 in.) mounting hole diameter for panels 0.5-8.0 mm (0.02-0.31 in.) thick
  • Solid-state design ensures resistance to electrical and mechanical shock, vibration, frequent switching and environmental extremes
  • Operating temperature range of -25-75 C (-13-167 F)
  • RoHS compliant
  • Does not include any environmentally hazardous substances
  • Choice of voltages – 6V DC, 12V DC, 24V DC, 120V AC
  • Available in 522nm Aqua Green, 464nm Super Blue, 629nm Super Red, 591nm Super Yellow and 8700K~11000K Cool White illumination colors
  • Average service life of 100,000-plus hours (over 10 years)
  • Other voltages and terminations – wire leads or screw terminals – are available as options
