Unlocking Versatility: The Power of PTO

Learn how power take-off (PTO) systems are maximizing the potential of diesel engines across diverse industries, driving efficiency and versatility.

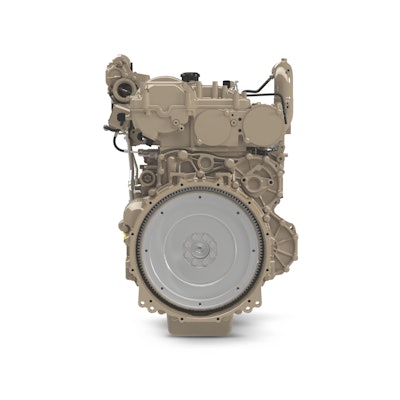

The John Deere JD4 industrial engine has a two forward-facing auxiliary drives and one rear-facing auxiliary drive, allowing for greater user versatility.
The John Deere JD4 industrial engine has a two forward-facing auxiliary drives and one rear-facing auxiliary drive, allowing for greater user versatility.
John Deere Power Systems

While horsepower and torque often dominate discussions about off-highway engines, there is another often-overlooked feature of modern diesel engines that is playing a vital role in heavy-duty industries: Power take-off (PTO). This versatile mechanism is a driving force behind countless applications, making diesel engines more flexible, more customizable, and better optimized for today’s power needs.

What does PTO do for diesel engines?

A diesel engine is the powerhouse of a machine, generating energy to drive its primary function, like moving a piece of equipment forward. PTO enables a secondary outlet for that energy — a way to tap into the engine's power and direct it toward other tasks. It's a mechanical device that transfers the power generated by the engine to auxiliary attachments and components, such as hydraulic pumps or air compressors. By providing a means to power external components, PTO helps original equipment manufacturers (OEMs) reduce engine package size while expanding functionality.

How a PTO system works

Although PTO systems may differ in their design and application, the fundamental principle of power transfer remains the same. A PTO is often connected to the engine's crankshaft, gearbox, or auxiliary drive. As the engine runs, the PTO shaft rotates and translates power to off-boarded components. This connection can be engaged or disengaged as needed, allowing controlled transfer between primary power and component power needs.

PTO systems come in various configurations to meet diverse application needs. The John Deere JD4 industrial engine, for example, features two forward-facing auxiliary drives and one rear-facing auxiliary drive. This configuration offers flexibility for original equipment manufacturers (OEMs) because components can be strategically positioned based on their size and application requirements. Taller auxiliaries such as air compressors, for instance, can be packaged using the lower forward-facing PTO drives, tucking in close to the engine block under other components.

On the other hand, hydraulic pumps low and tight to the block are difficult to plumb hoses and lines to, so these are optimally positioned in a mid-position forward or rearward. This adaptability empowers OEMs to tailor the engine package to their specific needs, optimizing space utilization and component integration.

Four PTO system benefits

PTO systems offer numerous advantages that contribute to their widespread use across diverse industries. This versatility is valuable in sectors like agriculture, construction and forestry, where PTOs drive essential equipment. This adaptability translates to several key benefits:

  1. Increased efficiency: By using a single engine to power multiple functions, PTOs eliminate the need for separate power sources for each piece of equipment, streamlining operations and reducing complexity.
  2. Cost-effectiveness: PTOs harness the engine's existing power, eliminating the need for separate engines or motors to drive accessories. This can reduce equipment costs by powering accessories directly through an efficient gear interface while avoiding the complexity and expense of installing and connecting extra engines in the vehicle.
  3. Enhanced versatility: The flexibility of PTOs makes diesel engines adaptable for a wide range of tasks, increasing their overall versatility and value.
  4. Robust reliability: PTO systems are designed for durability and consistent performance to ensure reliable operation even in demanding applications.

Beyond these benefits, PTOs play a crucial role in enabling compact engine designs. As manufacturers focus on creating more efficient engines with optimized footprints, PTO systems are becoming even more important for maintaining functionality without sacrificing performance. By integrating PTOs directly into the engine block, manufacturers can provide efficient power transfer for auxiliary components in a compact and streamlined package. This integration helps optimize space utilization and component placement, overcoming the challenges of limited space in modern engine compartments.

Looking ahead for PTO systems

As technology advances, PTO systems are becoming even more sophisticated. We're seeing the emergence of features like electronic control, which allows more precise and automated operation of auxiliary equipment. Variable speed operation is another promising technology, offering greater control over the power delivered to the PTO. These advancements will enhance efficiency, underscoring the vital role PTOs will play in the future of diesel engine applications.

As the power landscape continues to evolve with the integration of new technologies like electrification and hybridization, a well-rounded power portfolio becomes more critical. Off-highway applications are adopting diverse powertrain solutions with the flexibility to adapt to both traditional internal combustion engines (ICE) and newer electric and hybrid systems.

In this dynamic environment, the PTO will serve as a vital bridge between these technologies. Its ability to transfer and distribute power makes it an essential component in the transition toward a more sustainable and efficient future. By enabling seamless integration of ICE technology with electric drives and hybrid configurations, PTO systems will contribute to optimized performance and increased efficiency in the next generation of off-highway equipment.
