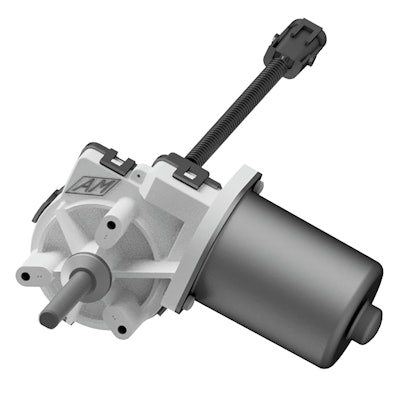

AM Equipment 240 Series Encoded DC Gear Motors

The 240 Series encoded motors allow precise control of movement in applications where motion can be interrupted and rapid recovery is required.

50122666388 D3be96464c O

AM Equipment introduces an encoded version of its 240 Series DC gear motor suitable for precision actuation applications.

  • Integrated two-channel encoder
  • Uses 5V signal to report speed, direction and incremental position
  • Allows precise control of movement in applications where motion can be interrupted and rapid recovery is required
  • Well suited for outdoor applications which require a reliable high-torque motor, such as vocational trucks, construction and agricultural equipment, and robots
  • Low power draw suits battery-powered applications where time between charging can be extended
  •   12V input and 40 Nm output
  • Bidirectional, single speed
  • Encoder resolution of 520 pulses per output revolution
  • Sealed connectors to allow safe operation in dirty environments
  • Longer brush length and improved compound for longer brush life
  • Two standard output shaft options of 11 mm (0.43 in.) diameter with 40 mm (1.6 in.) flat and 12 mm (0.47 in.) diameter with 4 mm (0.16 in.) wide keyway and snap ring groove
  • Custom shafts are also available
