Axiomatic Introduces CAN-Ethernet Support Package for CAN/Ethernet Converter

Axiomatic's CAN-Ethernet Support Package contains software modules and examples to aid application software development for its AX140900 CAN/Ethernet Converter.

Ax140900 300dpi 583c62818df3c
Axiomatic Logo 2019

Axiomatic releases a CAN-Ethernet Support Package (SSP) for developing application software when working with the AX140900 CAN/Ethernet Converter.

The CAN-Ethernet Support Package (SSP) is a set of software modules and examples for users of the AX140900 Ethernet-CAN Converter. It is written is a standard C programming language. The modules provide support for the Axiomatic Proprietary Communication and Discovery Protocols. The Communication Protocol is for transmitting CAN messages over the Ethernet TCP/IP network and the Discovery Protocol is for locating the converter on the LAN. The SSP is useful for programming embedded systems and for application programming in Windows or Linux.

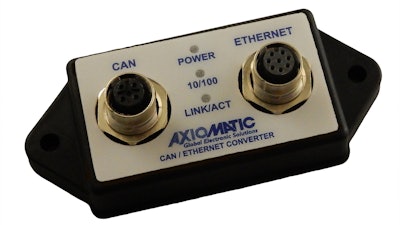

The CAN/Ethernet Converter, P/N: AX140900, converts CAN frames into UDP or TCP IP datagrams and sending them over the Ethernet network. The device can also convert UDP or TCP datagrams into CAN frames. It supports a high-speed CAN with a baud rate of up to 1Mbit/s and a fast 100Mbit/s Ethernet. All standard and extended CAN frames, including data and remote frames, are supported. The power can be passed through to the CAN port. Protection is provided. To ensure low latency in processing CAN and Ethernet messages, the converter software runs under control of a real-time operating system.

The converter is designed to work on off-road machinery or in a harsh industrial environment with power transients, high humidity and vibrations. It can be used out-of-the box without the SSP for interfacing between Ethernet devices and the machine CAN network. One or more converters can be installed depending on the number of CAN busses in the system.

The converter contains a web server to set up configuration parameters and monitor the internal state of the converter using a web browser. The user can remotely monitor and configure Axiomatic CAN-based controllers over the internet using the AX140900 CANEthernet Converter together with the Axiomatic EA and CAN-Scope software. This service tool EA-Connect.
