Axiomatic AX083201 and AX083301 DC/DC Converters

The Axiomatic AX083201 or AX083301 DC/DC Converters have a typical efficiency of 92%.

December 2, 2019

Axiomatic Technologies Corporation

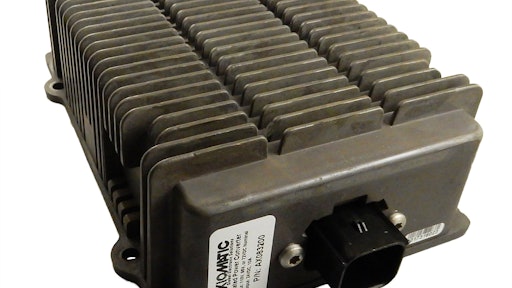

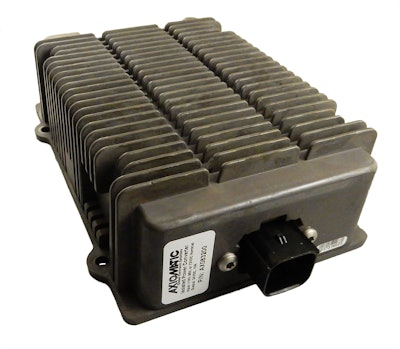

Ax083200 300dpi

The rugged Axiomatic AX083201 and AX083301 DC/DC Converters enable management of 110V/96V/72V DC battery power to 24V or 12V sensitive electronic devices.

110V, 96V or 72V DC nominal input
Wide input voltage range (20-137V, some derating of output regulation for input less than 42V)
24V DC, 240 Watts output or 12V DC, 240 Watts output
Isolated
Optional Enable signal
Typical efficiency of 92%
Input inrush current limit
Thermal protection for over temperature
Reverse battery, over- and under-voltage protection
Short circuit and overcurrent protection
Operating temperature range of -40-85 C (-40-185 F) with some derating
Includes 16-pin connector
Can be used in a current sharing configuration
Redundancy for parallel application
EMI/EMC compliant
Suitable for high vibration, high shock environments
IP67 protection
Applications include use in mining and other off-highway vehicles

Fill out the form below to request more information about Axiomatic AX083201 and AX083301 DC/DC Converters
