icotek Splittable KEL-SNAP-S Cable Entry Frames

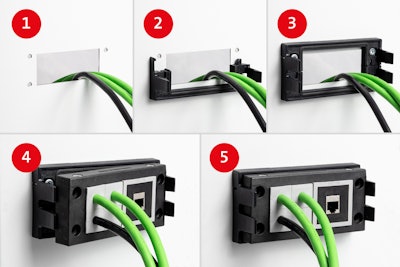

The KEL-SNAP-S eliminates the need to thread cables through the frame as the splittable design snaps together once cables are passed through the cutout.

Pr Icotek Kel Snap S
icotek
Logo Icotek With Slogan

icotek offers patented splittable KEL-SNAP frames which are designed to provide quick and tool-free assembly for the KEL/KEL-U/KEL-QUICK/KEL-FG-A c able entry frames.

  • Can be equipped onto switch cabinets in advance by control manufacturer to facilitate assembly by machine manufacturer
  • BPK-SNAP dummy plates are used when frames are no longer required or should be closed before transport
  • Features an integrated seal on both sides
  • Splittable, snap-in design enables easy retrofitting
  • Already installed KEL-SNAP needing modification can be replaced by a single frame without having to disconnect cables and without having to dismantle existing frame
  • Does not require cables to be thread through as frame only snaps together when cables have already been passed through the cut out
  • Cut-out size of 46 mm (1.8 in.) available to allow use of prefabricated multi-pin connectors
  • Identical drill pattern to other cable entry strips from icotek (except for KEL-SNAP-B)
  • Achieves protection class IP54 and certified according to DIN EN 60529
  • Approved temperature ranges of -40-140 C (-40-284 F [static])
