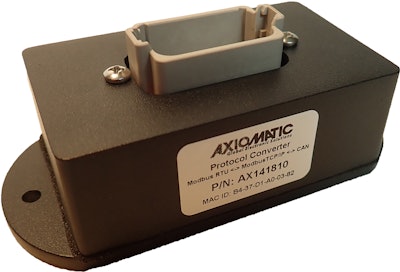

Axiomatic Technologies Corporation introduces the AX141810 Modbus Router with Ethernet and CAN to provide flexible and robust connectivity.
- Features a fast data exchange between a CAN network (SAE J1939), RS-485 bus (Modbus RTU) and Ethernet (Modbus TCP/IP)
- User configurable via a web browser
- Comprised of one isolated CAN port (CAN 2.0B), one isolated RS-485 serial port, and one Ethernet port (Modbus TCP)
- Includes two models
,the AX141810 and AX141830 - AX141810 works as a bidirectional Modbus (RTU+TCP/IP) to CAN and vice versa
- AX141830 works in a CAN to Modbus (RTU+TCP/IP) direction
- Operational from 9-36V DC (12V DC and 24V DC nominal), with an integrated TE Deutsch 12-pin connector
- Offers surge, over-voltage, and reverse polarity protection
- Provides a protection rating of IP67, allowing it to survive in harsh environments during applications such as communications interface between machine and master controls systems
- Supports one to one conversion of TTL, RS-232, RS-485, two CANbus networks, Ethernet (and proprietary protocols on request)
