Carling CM-Series

The controller module can accommodate up to 45 switch functions.

Cm Switch Left
Carling Technologies
Carling Logo Primary 589a3e34ced2e

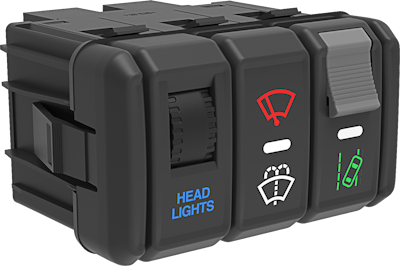

The CM-Series from Carling Technologies features a three-compartment carrier that accommodates uniquely identifiable switches and rheostats. Highlights include two LIN connectors that allow for the CM-Series to be daisy chained to other modules and to be connected to a controller module; and the option of being hardwired as a two-pole switch. The controller module can accommodate up to 45 switch functions and connects to an ECU (not provided) via a CAN network.

Product Highlights

  • Three-compartment carrier
  • Standard, locking and rheostat laser etched switches
  • Up to 45 switch functions
  • 12/24 VDC
  • 100,000 operations

Typical Applications

  • Commercial vehicles
  • Construction equipment
  • Agricultural equipment
  • Work trucks
