Webtec SAE J1939 CAN Hydraulic Sensors

The Webtec series of SAE J1939 CAN hydraulic sensors provide real-time monitoring of hydraulic flow, pressure and temperature shock to help predict potential failure.

Ctj1939 592ec12c13f95
Webtec Logo Hi Res 5930b694cc87b

Webtec has introduced a series of SAE J1939 CAN hydraulic sensors for OEM mobile and industrial applications where customers require real-time monitoring of hydraulic flow, pressure and temperature around the clock.

  • Designed for closed loop control on high-pressure hydraulic systems
  • Helps users predict imminent hydraulic failure
  • Can be used to perform diagnostic fault-finding, ultimately helping to prevent or reduce downtime and warranty claims

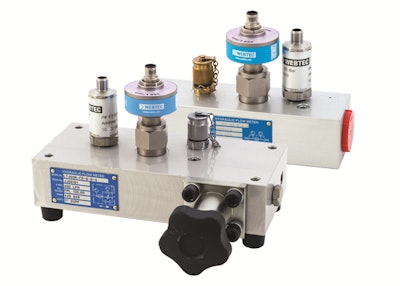

  • Mounts on a test point or onto CT range of J1939 CAN turbine flow meters to provide convenient digital solution for measurement of pressure, flow and temperature on pumps, valves and hydrostatic transmissions
  • CT flow meter can be installed anywhere in hydraulic circuit for production or development testing, commissioning and monitoring of control systems
  • Flows from 1-1,500 lpm (0.25-400 gpm) can be measured at up to 480 bar (7,000 psi)
  • Pressure sensors also available with measurement capability up to 1,000 bar (14,400 psi)
  • Adding manual loading valve on meters enables further test scenarios to be simulated and monitored, such as pump efficiency
  • Transmits signal digitally, making it less susceptible to attenuation or interference to ensure better repeatability and accuracy
  • Connected in series so just one cable needs to be connected to the machine PLC
  • CT range of turbine flow meters are available with wide range of outputs including mA, 5V, Sensor Recognition, CANopen and J1939 CAN
  • All flow meters are calibrated to 21 cSt as standard and are compatible with wide range of hydraulic oils, lubrication oils and fuels
  • Porting is BSPP or SAE (bi-directional operation), while integrated loading valve is optional
